ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine

    Buy cheap ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine from wholesalers

    Buy cheap ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine from wholesalers
    • Buy cheap ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine from wholesalers

    ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine

    Ask Lasest Price
    Brand Name : gaochuang
    Model Number : GCP-1530
    Certification : CE ISO9001
    Price : 5699~6699 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 set per month
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

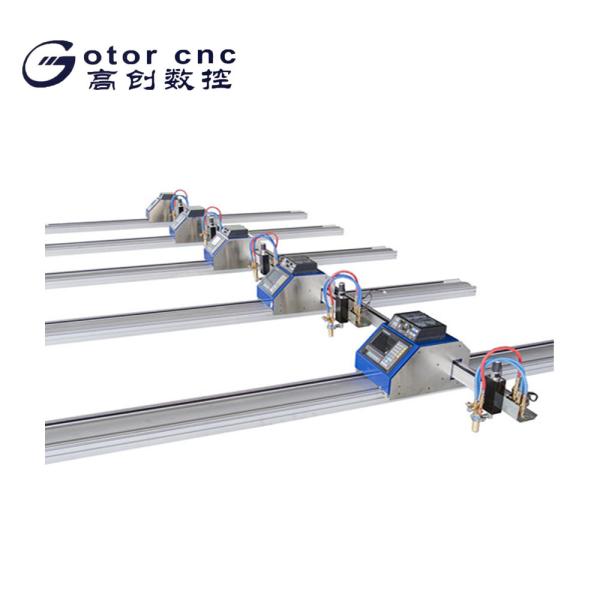

    ISO9001 0-150mm Stainless Steel Pipe Cutter Machine Cnc Plasma Tube Cutting Machine

    Small Pipe Cutting Machine CNC Plasma Pipe Cutting Machine Tube Sheet Cutter Machine


    Portable Flame and Plasma CNC cutting machine is mainly used in all kinds of metal plates (such as: carbon

    steel, stainless steel, aluminum, low alloy steel, aluminum alloy), but also in the complex pattern of the

    above materials Processing.

    Technical Specification
    Product NameCNC Portable Tube sheet dual-purpose cutting machine
    ModelMS-2090X
    Control SystemSF-2100S
    Motor57 Stepper Motor
    ColorRed,Blue,Yellow.
    Cutting ModePlasma Cutting+ Flame Cutting
    Flame Cutting GasOxygen with propane or acetylene
    Plasma Torch GasCompressed air/N2/O2
    Working Area1500mm*3000mm or 2000mm*3000mm
    Cutting thickness0-150mm
    Cutting speed0-8000mm/min
    Operation precision0.2mm/m

    Main Features:

    1. The whole machine structure is a portable cross-shaped structure, which is simpler to operate, lower in purchase cost, and more practical;
    2. The whole machine operating system is the Shanghai Jiaotong University tube-sheet dual-use numerical control system (can be equipped with Beijing Starfun CNC system). This system supports tube-sheet dual-use; the cutting program can be cut directly by changing parameters in the system, greatly reducing labor cost.
    3. It can realize the dual-purpose cutting method of flame plasma. The plasma can automatically adjust the arc voltage. The height adjuster adopts Hayes HP-105.
    4.The cutting method is a tube-plate dual-purpose steel plate with a cutting range of 1500mm and a tube cutting diameter of 300mm
