    1000W 2000W 1500W 3000W Fiber Laser Cutting Machine For Metal

    Ask Lasest Price
    Brand Name : gaochuang
    Model Number : 1530
    Certification : CE
    Price : 1 SET/13999 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5 SETS /Month
    Delivery Time : 35
    • Product Details
    • Company Profile

    1000W 2000W 1500W 3000W Fiber Laser Cutting Machine For Metal

    New Discount Price 1000W 2000W 1500W 3000W Fiber Laser Cutting Machine For Metal
    Product Description

    Application Industry

    Cutting a wide variety of metal plates,tubes,mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rate metal and other materials cutting.
    Application Industry
    Industry of kitchen ware,lamps and lanterns,panel beating,metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

    Main Features

    1) High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.


    2) Gantry double-drive structure, with imported German rack&pinion transmission system,improves the production efficiency.


    3) High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.


    4) Open worktable, simple operation and small space occupation.


    Technical parameter

    O.ModelNameQuantityRemarks
    1HN-30153000*1500mm1 setHongniu
    2Laser source1000W(optional)1 setMAX
    3Water chillerSpecial water chiller for fiber laser generator1 setstandard S&A
    4Laser headHigh accuracy professional fiber laser head1 setRaytools
    5Control systemJCZ1 setNcstudio
    6Driving systemHigh speed servo motor4 setsLEAD motor
    7Reduction gearMotoreducer3 setMotoreducer
    8Electric componentsFAMOUS1 setScheider
    9Guide railFAMOUS1 setT-WIN
    10RackFAMOUS1 setT-WIN
    11Proportional valveFAMOUS1 setSMC

    Industrial Machine bed
    A solid bed has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years.

    Servo Motor
    Imported from Japan, use top brand Yaskawa, Fuji, etc. High power motor system on X, Y, Z axis. High precision give better cutting effect, high speed give faster cutting speed.

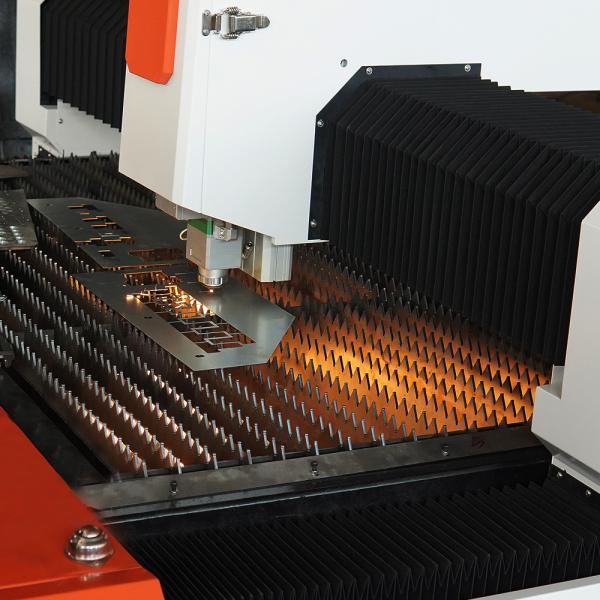

    Laser Cutting head
    3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time. Auto focus save time for operator, easy to learn.

    Laser Source
    Raycus/MAX/IPG, multiple choice
    Different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from 1kw to 12kw, and more higher 15kw, 20kw, 30kw.

    Auto Height Adjuster
    BCS100 auto height adjustment system, give more easier control between Laser Head and Cutting Software. Could control by both the button inside cabinet and the manual inside the software.

    Independent Cabinet
    Independent control cabinet, biggest protect the electrical components, servo driver, laser source. Cabinet with the air conditioner, also could cooling the parts.
    Our Services

    1) 2 years warranty(no human reason)
    2) We will provide the consumable parts at an agency price
    3) 24 hours online service, free technical support
    4) Machine has been adjusted before delivery, operation disk is included in the delivery
    5) We have manual instruction and CD ( Guiding Videos) for software installation, operation and machine using and maintain


    1. who are we?
    We are based in Shandong, China, start from 2012,sell to Southeast Asia(30.00%),Africa(10.00%),Mid East(10.00%),South
    Asia(8.00%),Western Europe(7.00%),Central America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),South America(5.00%),North
    America(5.00%),Domestic Market(3.00%),Eastern Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%). There are total about 11-50 people
    in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    cnc plasma cutting machine,cnc flame cutting machine,cnc air plasma cutting machine,gantry type cnc cutting machine,cnc table
    cutting machine

    4. why should you buy from us not from other suppliers?
    We prefer to explain for price for a while Don't want to apologize for the quality for whole life we believe that only the perfect
    quality is our proud because we are GaoChuang CNC, numerical control cutting machine of professional manufacturers.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU;
    Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
