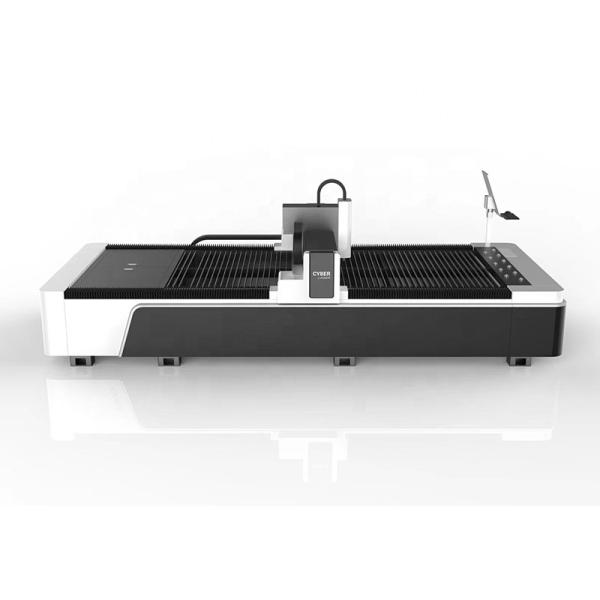

20m/Min Jcz Cnc Fiber Laser Cutting Machine 1000w 1500w 3000w 6000w

Ask Lasest Price
Brand Name :	gaochuang
Model Number :	1530
Certification :	CE
Price :	1 SET/13999 USD
Payment Terms :	L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :	5 SETS /Month
Delivery Time :	35

Add to Cart

Product Details
Company Profile

20m/Min Jcz Cnc Fiber Laser Cutting Machine 1000w 1500w 3000w 6000w

1,Power optional
We have power from 1000W to 12000W for you to choose. You can customize it according to your cutting thickness and cutting material.
2,Work area selectable
In order to meet the cutting of different sizes, our company has set the following working areas, which are 3015 and other areas respectively. In particular, you can contact us for customization.
3,Laser light source, cutting head and other related accessories can be selected
Our company is equipped with four different brands of laser light sources RAYCUS, MAX, NIGHT, IPG , three different cutting heads, and other parts that can be customized separately according to the needs of customers.

We use superior product parts with long service life and quality assurance.

20m/Min Jcz Cnc Fiber Laser Cutting Machine 1000w 1500w 3000w 6000w

1,fiber laser cutting machine head

Raytools Laser Cutting Head, Optimized optical configuration and smooth and efficient airflow design. Au3tech, Pretic, WSX, can be optional.

2,1000W Raycus Laser Generator

Higher photoelectric conversion efficiency, more stable beam quality, stronger
anti-high-reflection ability, to achieve better cutting results

3,Yaskawa servo motor and driver

Yaskawa servo motor and driver, Adjustment-free function, realize instant-on-use,
 automatic tuning function, improve performance.

4,The cast iron bed

The company adopts multiple processes for manufacturing, from robot welding, to quenching
process, and then to milling machine processing. Each process makes our products more excellent

Technical parameter
 	 			O. 			Model 			Name 			Quantity 			Remarks
		HN-3015 			3000*1500mm 			1 set 			Hongniu
		Laser source 			1000W(optional) 			1 set 			MAX
		Water chiller 			Special water chiller for fiber laser generator 			1 set 			standard S&A
		Laser head 			High accuracy professional fiber laser head 			1 set 			Raytools
		Control system 			JCZ 			1 set 			Ncstudio
		Driving system 			High speed servo motor 			4 sets 			LEAD motor
		Reduction gear 			Motoreducer 			3 set 			Motoreducer
		Electric components 			FAMOUS 			1 set 			Scheider
		Guide rail 			FAMOUS 			1 set 			T-WIN
		Rack 			FAMOUS 			1 set 			T-WIN
		Proportional valve 			FAMOUS 			1 set 			SMC


Industrial Machine bed

A solid bed has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years.

Servo Motor

Imported from Japan, use top brand Yaskawa, Fuji, etc. High power motor system on X, Y, Z axis. High precision give better cutting effect, high speed give faster cutting speed.

Laser Cutting head

3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively extending the continuous working time. Auto focus save time for operator, easy to learn.

Laser Source

Raycus/MAX/IPG, multiple choice
 Different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from 1kw to 12kw, and more higher 15kw, 20kw, 30kw.

Auto Height Adjuster

BCS100 auto height adjustment system, give more easier control between Laser Head and Cutting Software. Could control by both the button inside cabinet and the manual inside the software.

Independent Cabinet

Independent control cabinet, biggest protect the electrical components, servo driver, laser source. Cabinet with the air conditioner, also could cooling the parts.

Our Services

1) 2 years warranty(no human reason)
2) We will provide the consumable parts at an agency price
3) 24 hours online service, free technical support
4) Machine has been adjusted before delivery, operation disk is included in the delivery
5) We have manual instruction and CD ( Guiding Videos) for software installation, operation and machine using and maintain

1. who are we?
We are based in Shandong, China, start from 2012,sell to Southeast Asia(30.00%),Africa(10.00%),Mid East(10.00%),South
Asia(8.00%),Western Europe(7.00%),Central America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),South America(5.00%),North
America(5.00%),Domestic Market(3.00%),Eastern Asia(3.00%),Eastern Europe(2.00%),Oceania(2.00%). There are total about 11-50 people
in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cnc plasma cutting machine,cnc flame cutting machine,cnc air plasma cutting machine,gantry type cnc cutting machine,cnc table
cutting machine

4. why should you buy from us not from other suppliers?
We prefer to explain for price for a while Don't want to apologize for the quality for whole life we believe that only the perfect
quality is our proud because we are GaoChuang CNC, numerical control cutting machine of professional manufacturers.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
